Enquire about "15.2m3 (19.9yds3) Ejector Body for AD30" Now

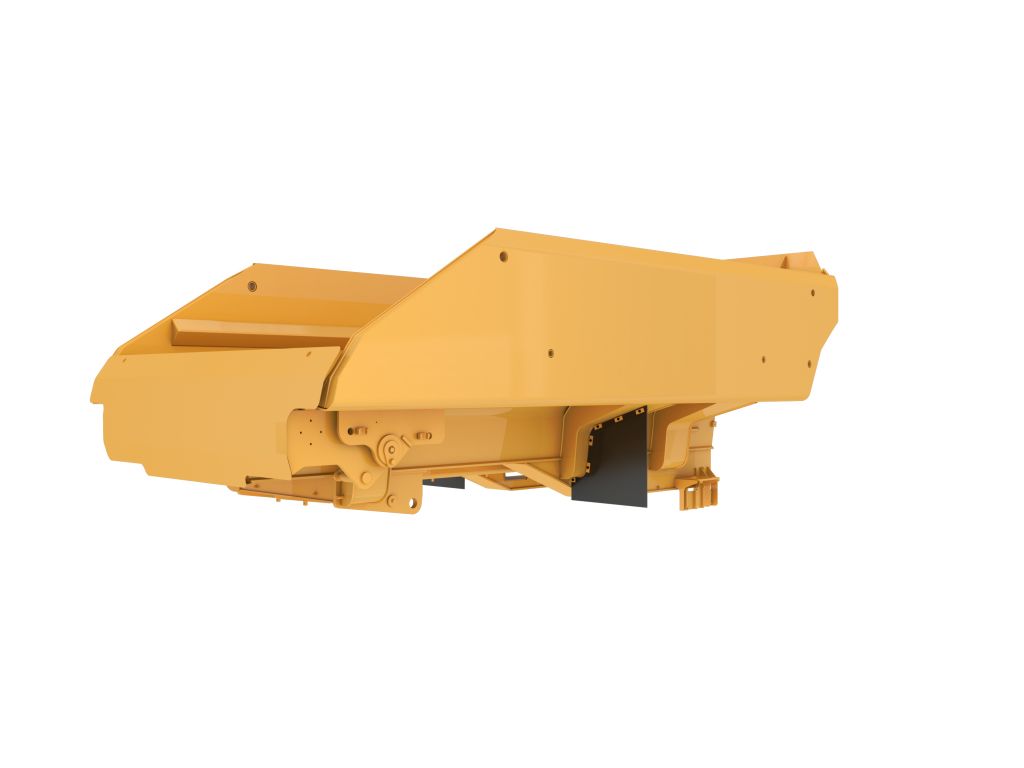

15.2m3 (19.9yds3) Ejector Body for AD30
- The Cat underground truck bodies have the same strength and toughness you would expect of any Cat product.
- Body materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Cat truck bodies are ideally sized and designed to work as part of a complete hauling system, helping you achieve high productivity and the lowest cost per ton.
- The Cat ejector bodies are designed to be able to discharge the full load without having to raise the body, therefore ideally for operations in areas with limited overhead clearance.
- The optional Truck Payload Management System (TPMS) calculates the payload the truck is carrying and determines truck cycle times.
- Cat branded bodies are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance.
- Multiple offerings to suit your unique mining application.
- Cat truck bodies are supported by Cat Global dealer network.
| Product Specifications | |
|---|---|
| Part Number | 613-7029 (Intl) / 613-7030 (US) |
| Machine Model | AD30 |
| Payload Capacity | 27000 kg (59525 lb) |
| Body Capacity | 16.8 mu00b3 (21.9 ydu00b3) |
| Base Body Height | 2791 mm (109.9 in) |
| Base Body Width | 2898 mm (114.1 in) |
| Truck Height u2013 Top of Empty Body | 2934 mm (115.5 in) |
| Truck Height u2013 Body Loading | 2791 mm (109.9 in) |
| Truck Height u2013 Dump Clearance* | 703 mm (27.7 in) |
| Truck Length u2013 Overall Body Down | 10393 mm (409.2 in) |
| Truck Width u2013 Machine with Body | 2898 mm (114.1 in) |
| Truck Width u2013 Machine without Body | 2690 mm (105.9 in) |
| Liner Options | Body liners, impact and/or wear |
| Note | *Measurement taken with tailgate down for ejector body. |
