Enquire about "1348 mm (53 in) Heavy Duty Fork Carriage" Now

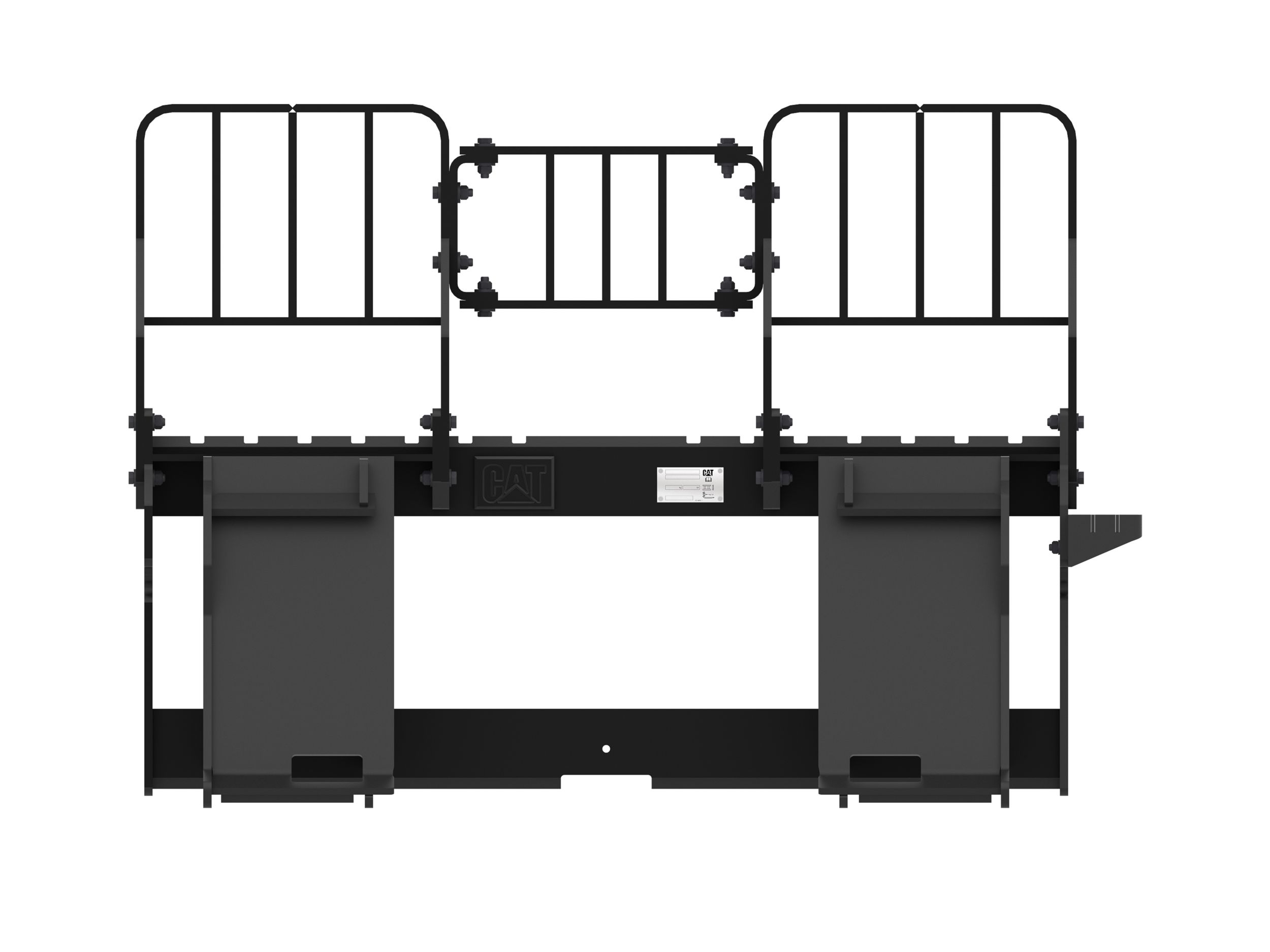

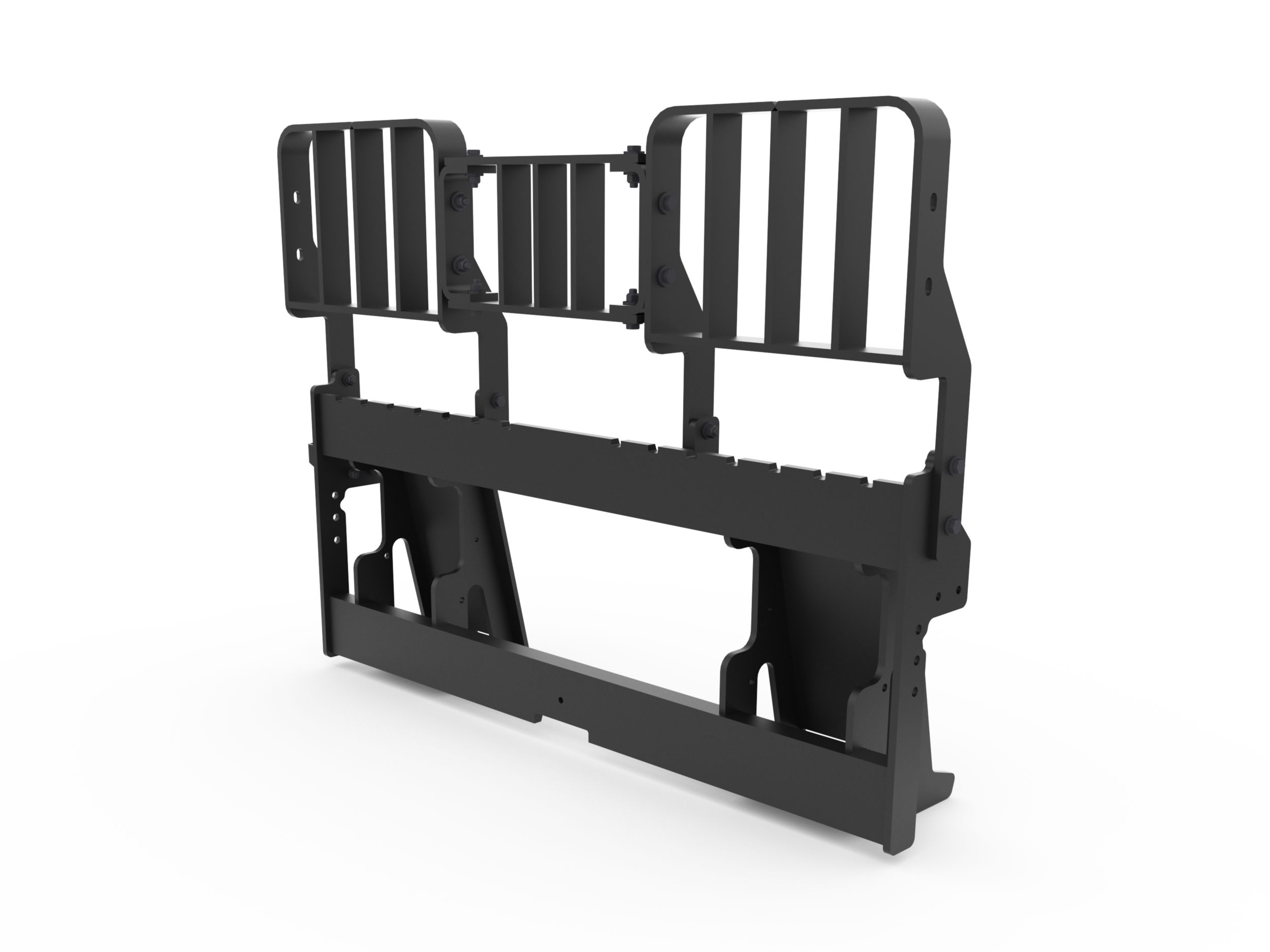

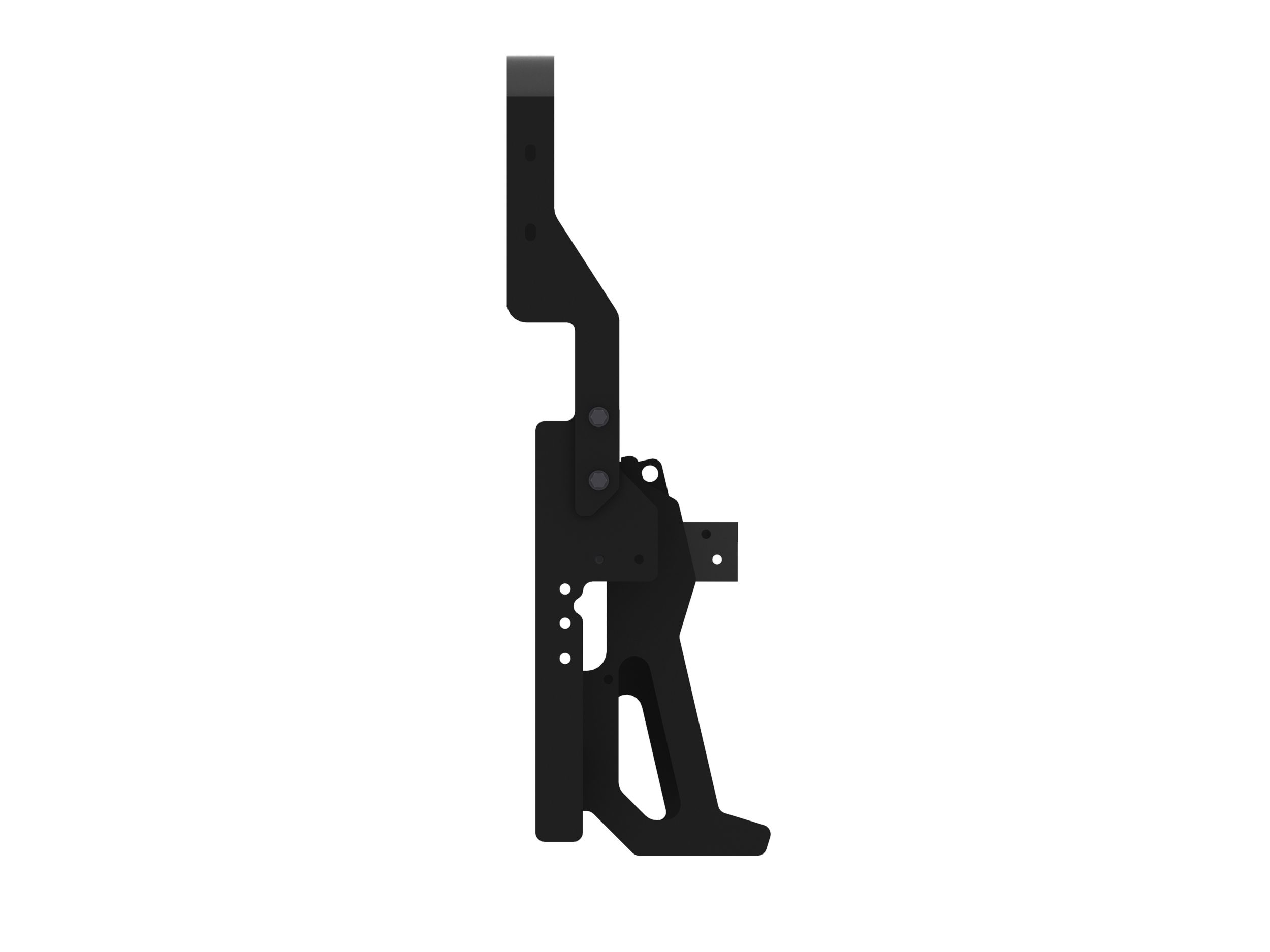

1348 mm (53 in) Heavy Duty Fork Carriage
Heavy Duty Backrest
Reinforced backrest designed to retain large, heavy, or bulky loads.
Removable Center Section
This section can be removed to allow the operator to enter and exit through the frame and to allow additional clearance on the compact wheel loader linkage.
Removable Backrest
Backrest can be completely removed when not needed for low profile loads.
Bolt-on Serrated Step
Serrated step provides safe access in and out of cab for operator’s safety.
Visual Class Indicator
The three vertical bar design is a clear indicator that the carriage is a class 3 fork carriage. Alternatively, the class 2 heavy duty for carriages have a two bar design.
| Product Specifications | |
|---|---|
| Height | 1009 mm (39.7 in) |
| Width | 1348 mm (53 in) |
| Overall Width | 1442 mm (56.8 in) |
| Weight | 192 kg (423.3 lb) |
| Length | 333 mm (13.1 in) |
| Tine Spacing | 250-1172 mm (10-46 in) centerline to centerline |
| Interface Type | Skid Steer Coupler |
