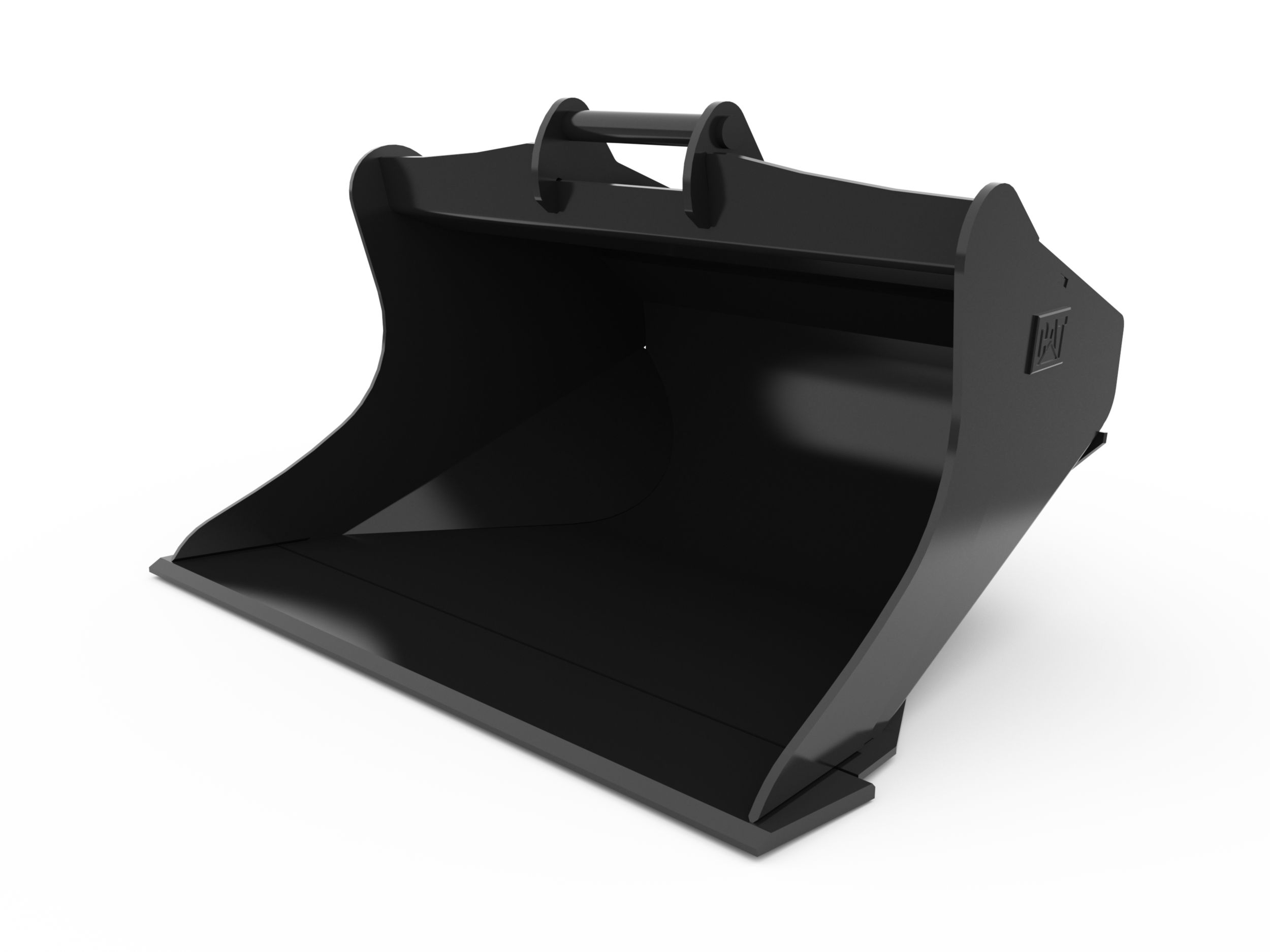

1300 mm (51 in) Nordic Grading Bucket
Application
Designed to create maximum performance in combination with a tiltrotator equipped with an S-Type or pin grabber coupler.
Wear Protected Side Plates
Specially designed side wear plates provide for optimal wear resistance in heavy duty applications.

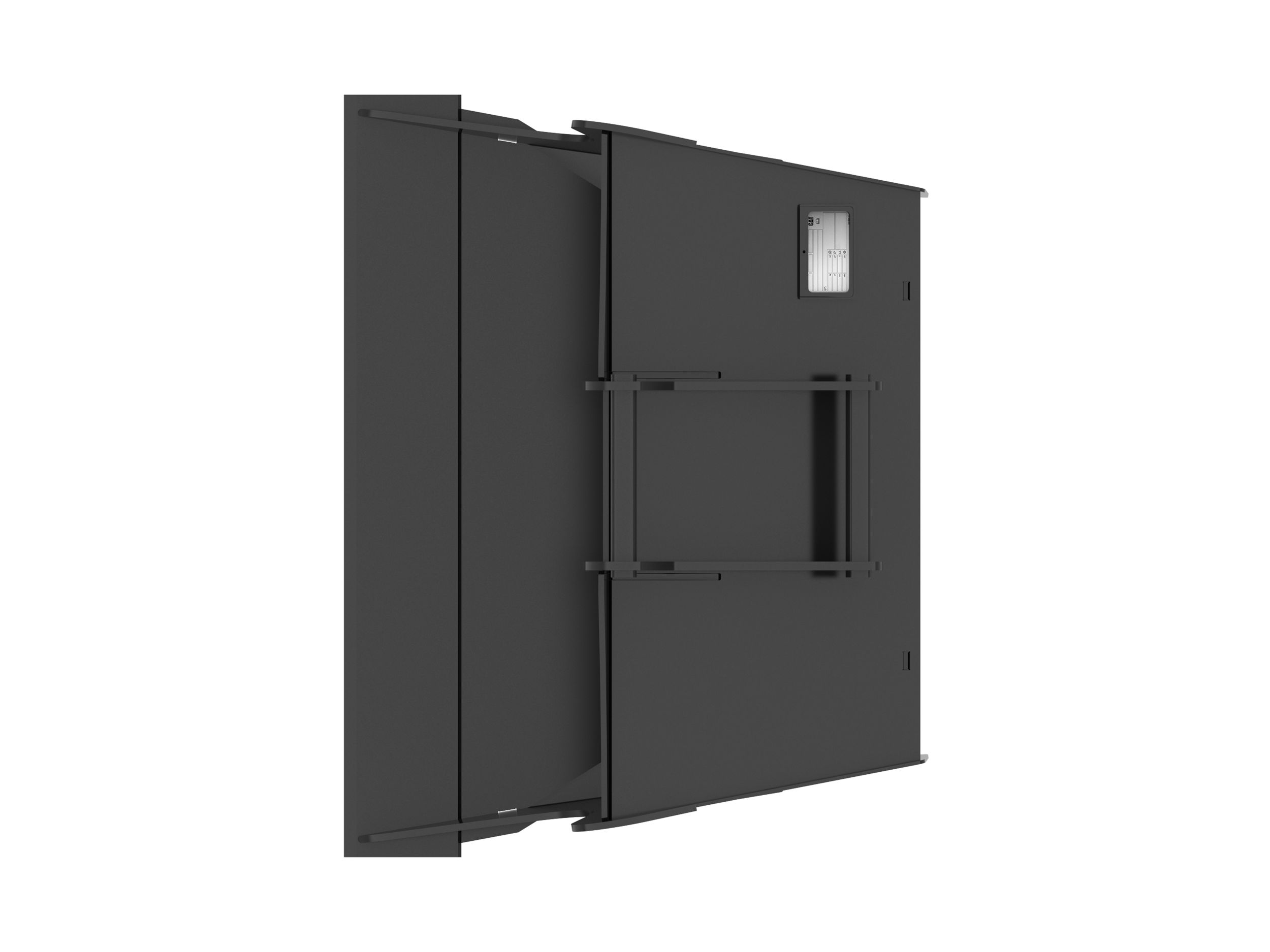

Torque Tube
For low build bracket solution, close to zero offset and high bending resistance even during high stress work.
Conical / Tapered Side Plates
Special shape allows for easy bucket filling and emptying as well as inner trench rotating capabilities while using in conjunction with a tiltrotator.
Short Tip Radius and Long Floor
With high breakout forces combined with tiltrotator usage, the bucket still produces acceptable bucket volumes.
| Product Specifications | |
|---|---|
| Width | 1300 mm (51 in) |
| Capacity | 400 l (14.1 ftu00b3) |
| Weight | 264 kg (582 lb) |
| Base Edge Thickness | 20 mm (0.8 in) |
| Tip Radius | 842 mm (33.1 in) |
| Interface Type | S-45 Coupler |
