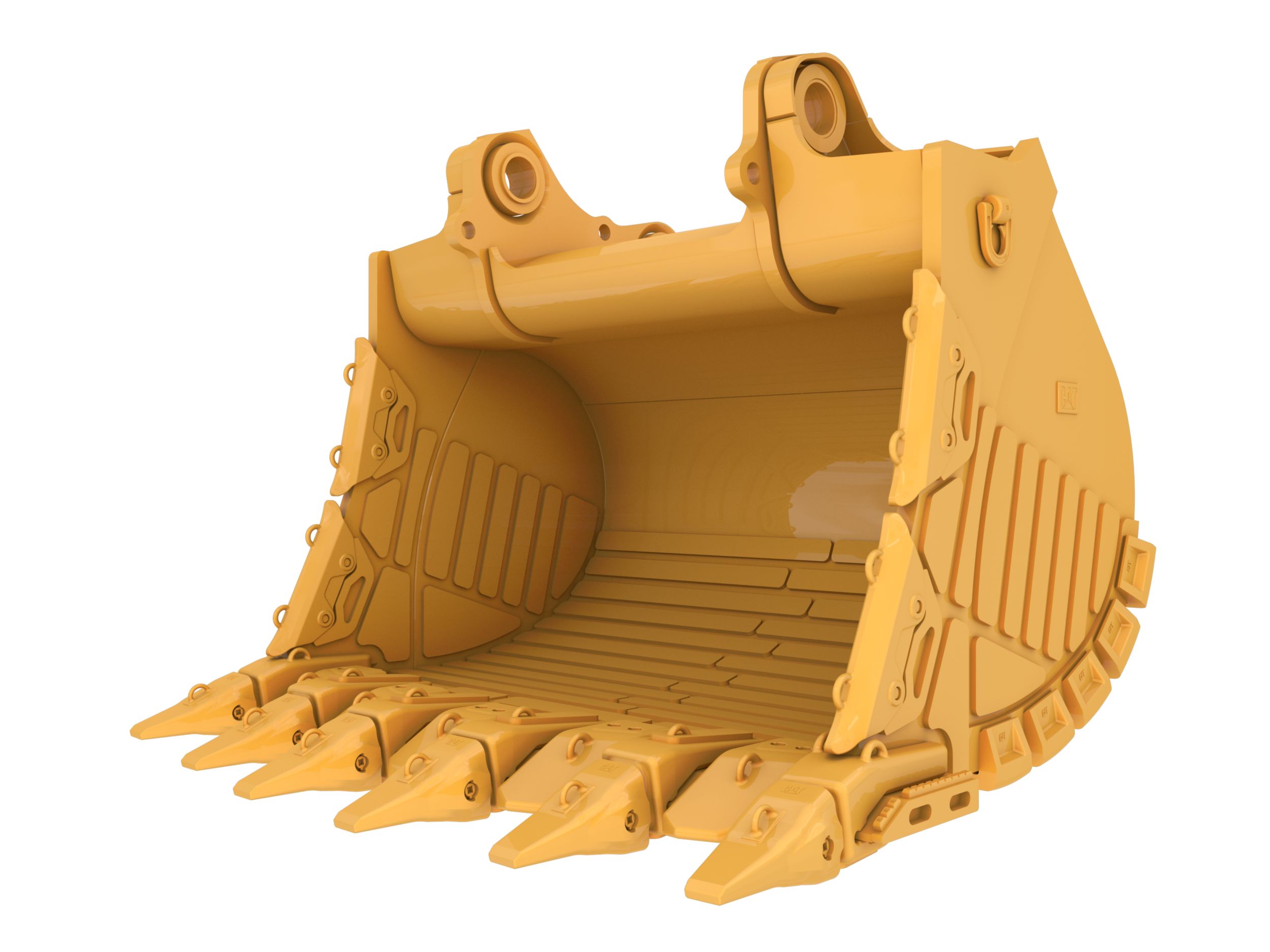

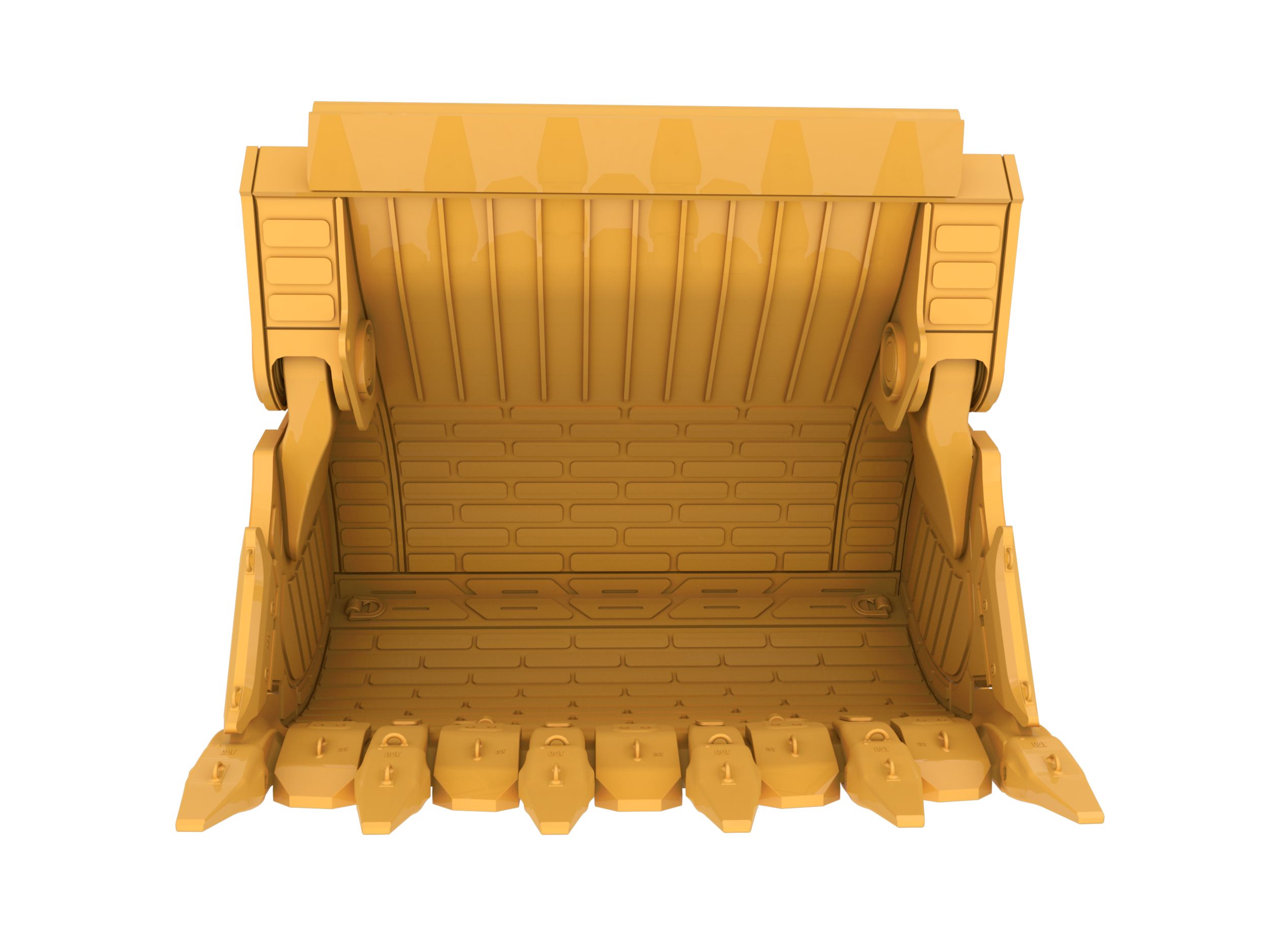

11 m³ (14.4 yd³) Heavy Rock bucket for 6020B
Efficient
Pass matched to Cat and Unit Rig trucks for an efficient, cost-effective system at your mine site.
Maximum Payload
Rated at ISO 7451 payload standards with a 1:1 heap ratio
Support When You Need It
Cat mining buckets are fully supported by the Cat dealer network for round the clock support.
| Product Specifications | |
|---|---|
| Material Density | 1.8 t/mu00b3 (3034 lb/ydu00b3) |
| Outer Width | 3450 mm (135.8 in) |
| Inner Width | 3000 mm (118.1 in) |
| Wear Package | Extreme Duty - Impact |
| Weight | 13279 kg (29275 lb) |
| Ground Engaging Tool (GET) System | Cat C85 |
| Machine Model | 6020B |
| Capacity | 11 mu00b3 (14.4 ydu00b3) |
