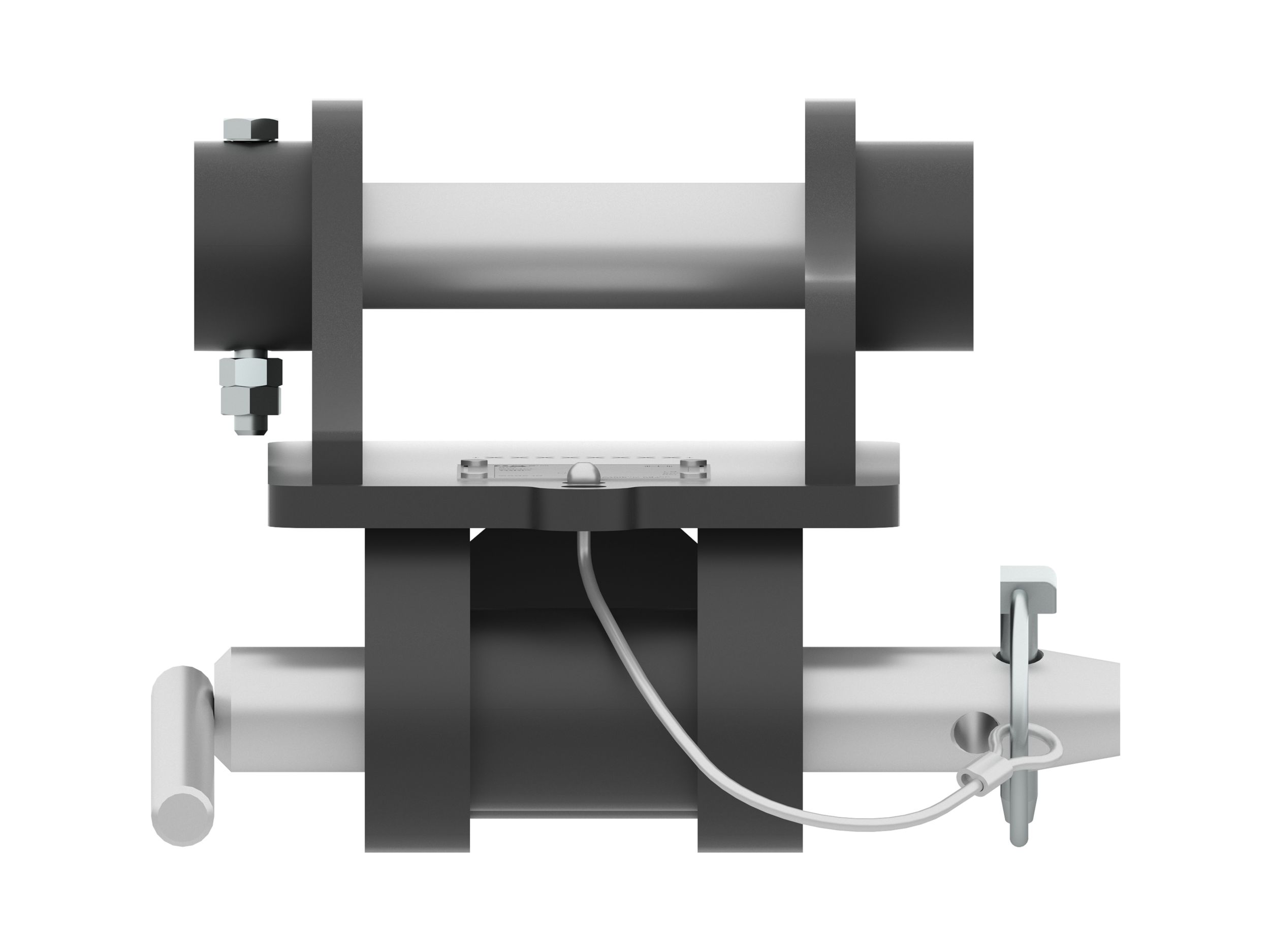

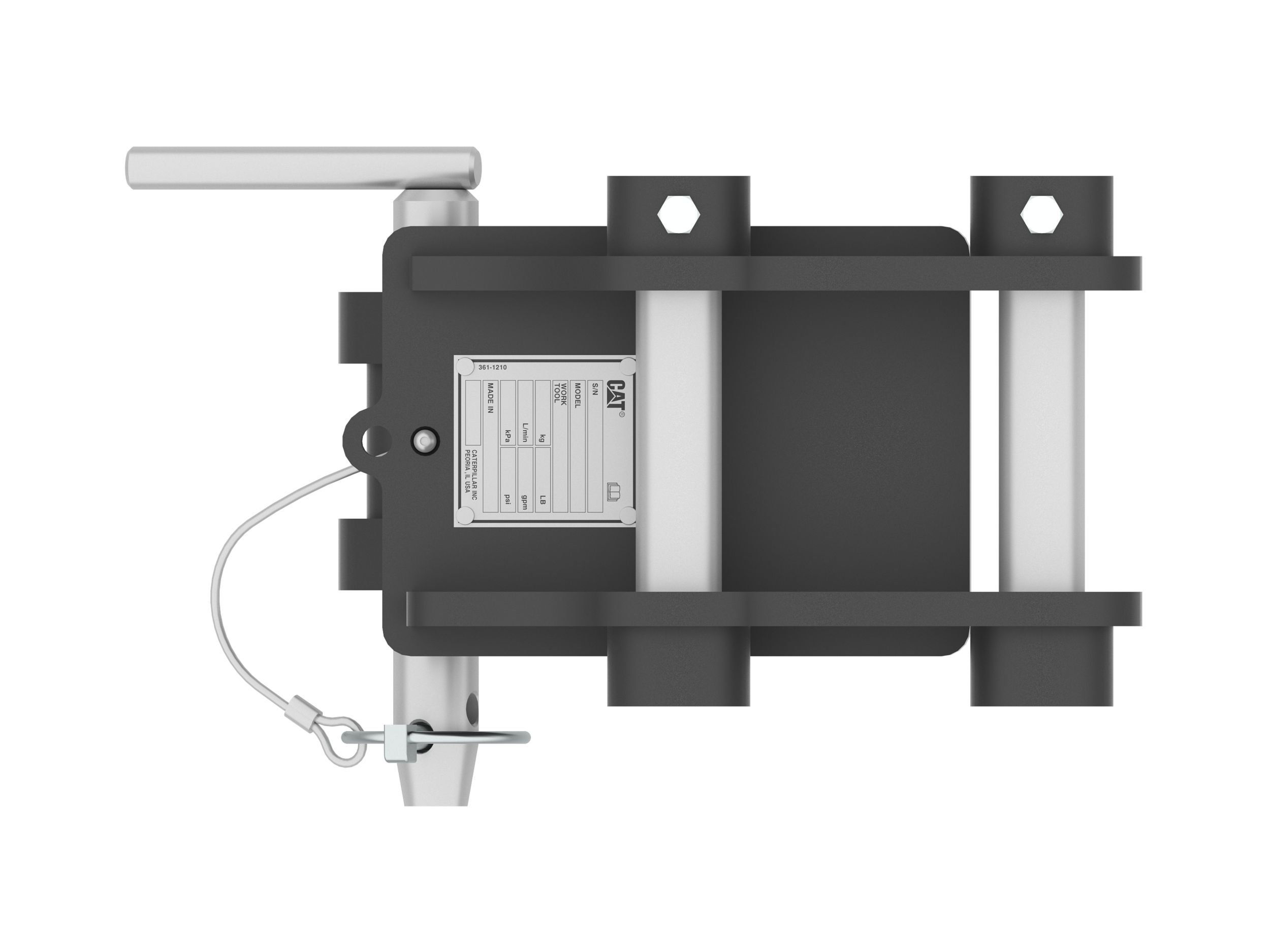

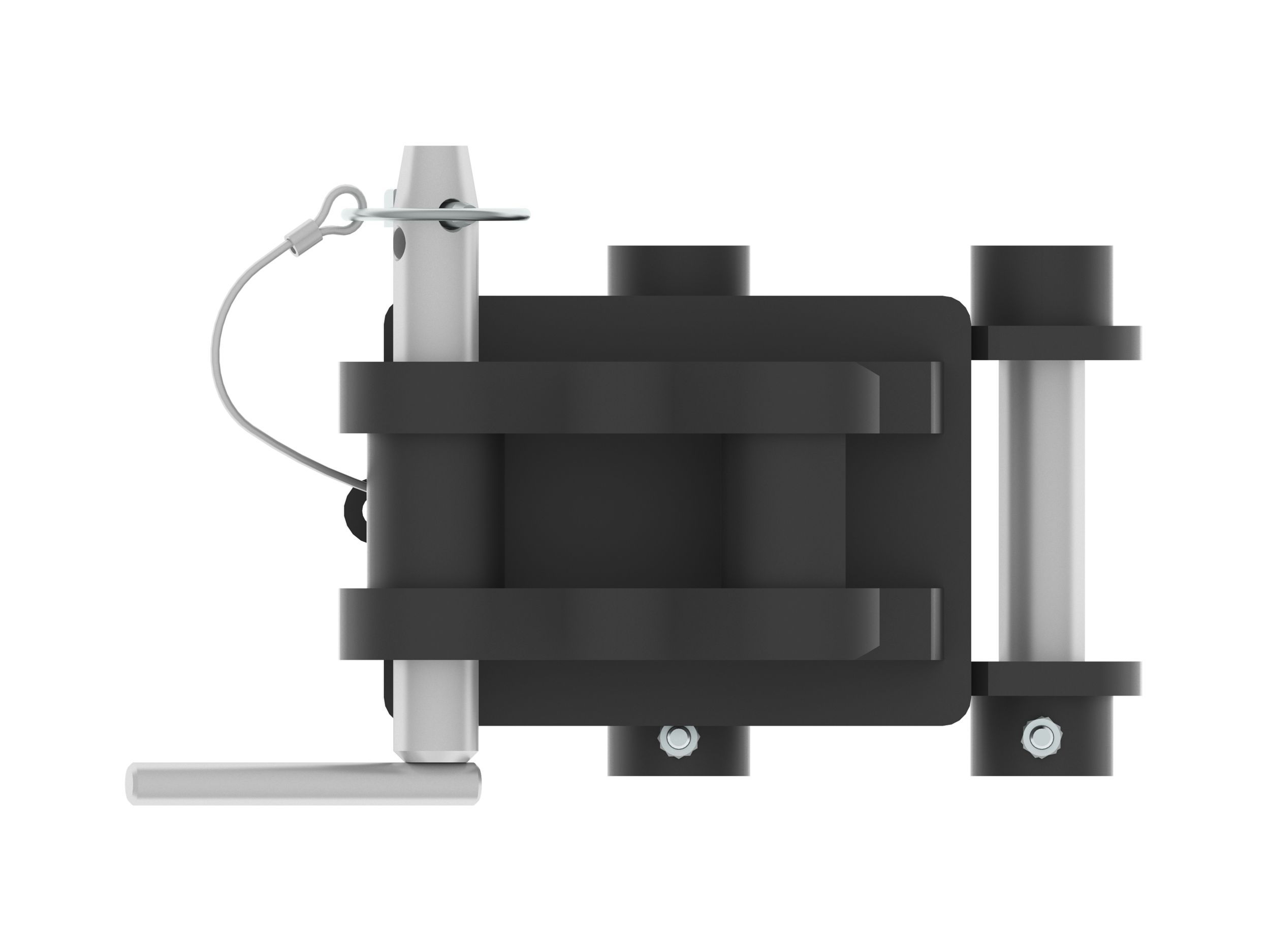

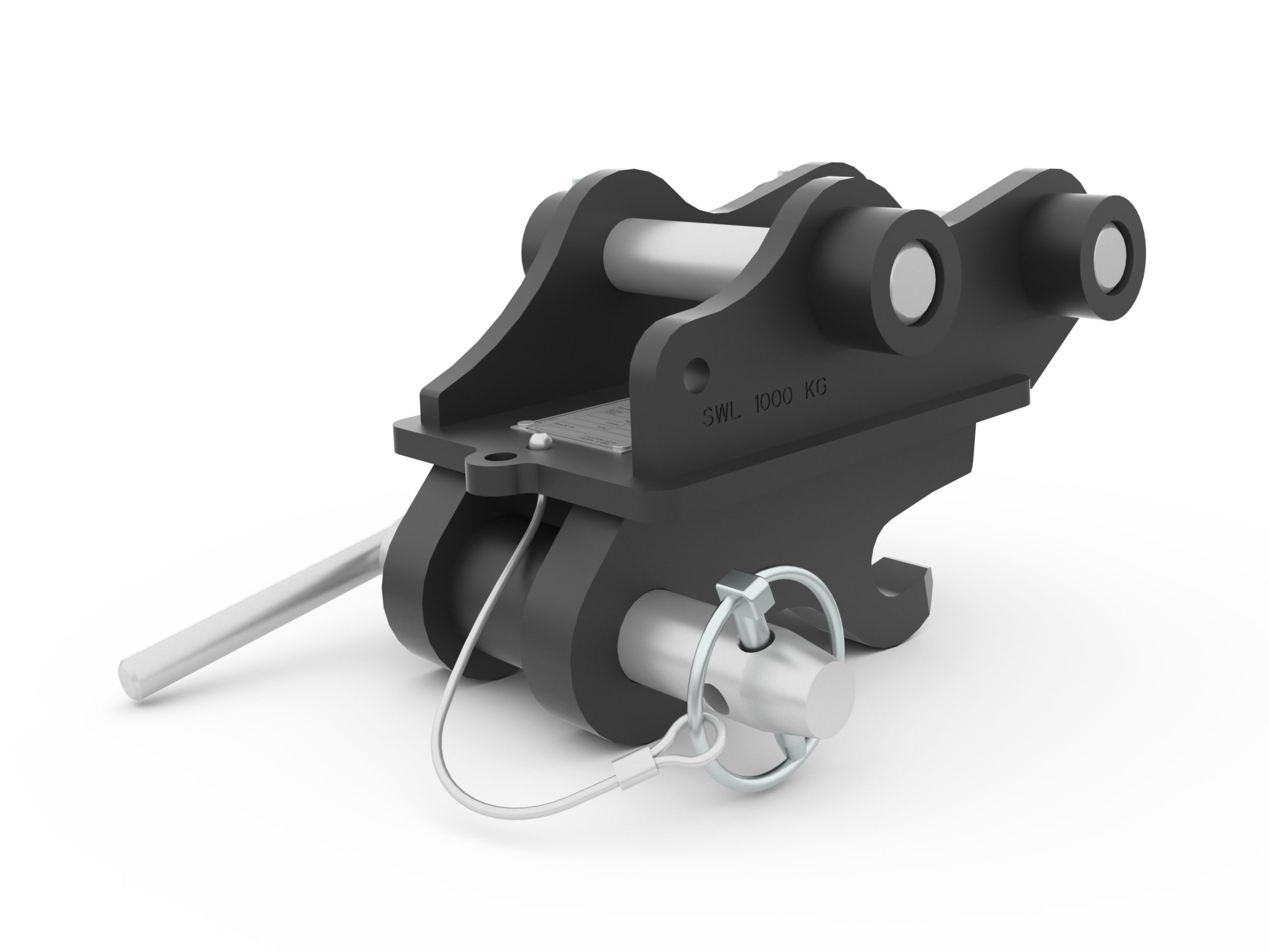

1 Tonne Mini Excavators Pin Puller Coupler for Mini Excavators
Designed with Rental in Mind
Designed for the rental market, this coupler provides a cost effective and easy way to quickly swap tools.
Easy Pull Handle
Large handle allows the operator to quickly and easily pull the pin for a fast tool change.
Retention Pin Lanyard
The retention pin has a lanyard to secure it the coupler to avoid it getting lost or misplaced.
Safe Working Load
Each size of coupler has the safe working load clearly marked on it for easy reference.
| Product Specifications | |
|---|---|
| Weight | 14.6 kg (32.2 lb) |
| Width | 230 mm (9.1 in) |
| Overall Length | 286 mm (11.3 in) |
| Overall Height | 181 mm (7.1 in) |
| Pin Diameter | 30 mm/30 mm (1.2 in/1.2 in) |
| Machine Class | 1 Ton Mini Excavators |
| Interface Type | Pin On |
