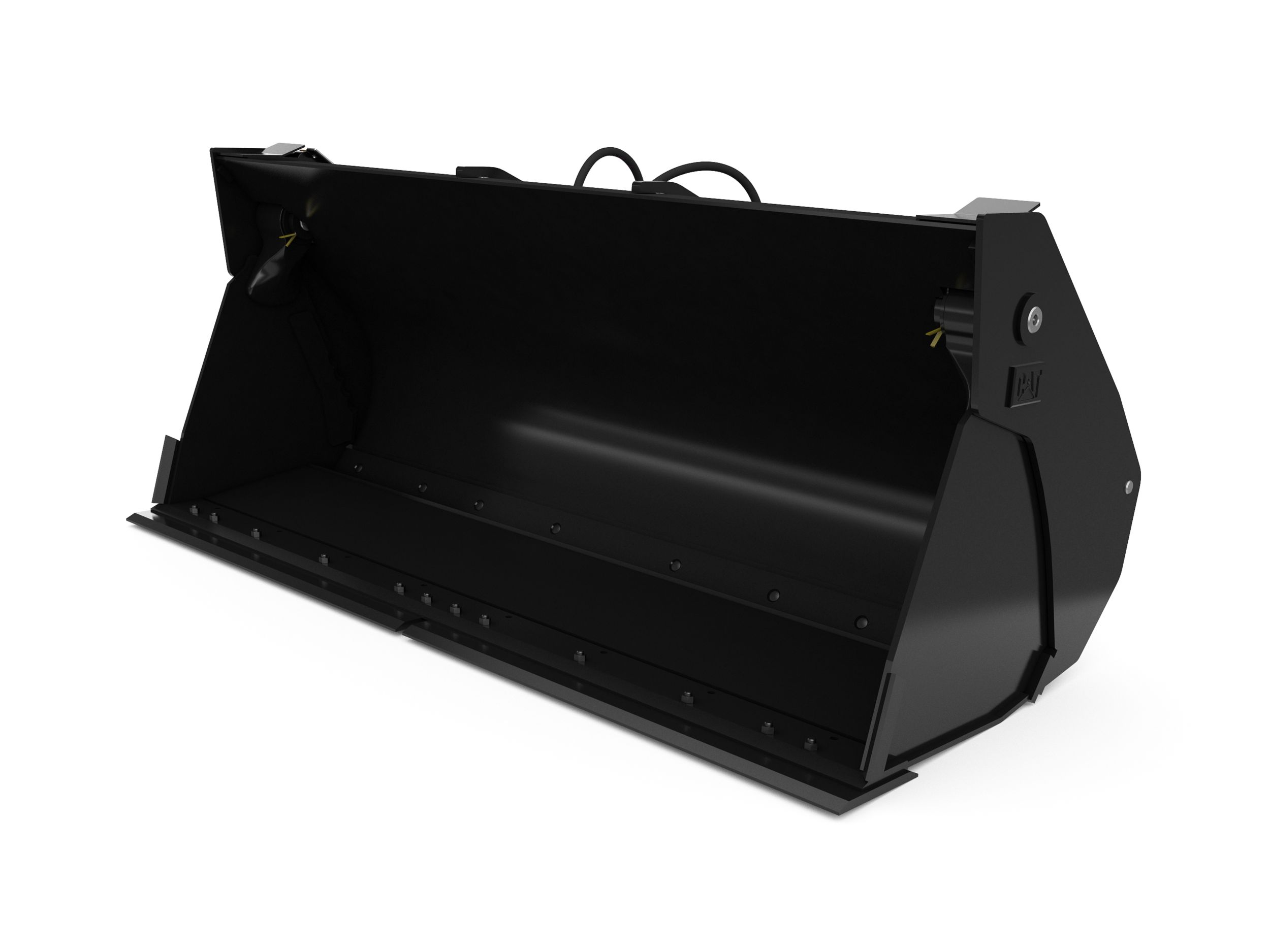

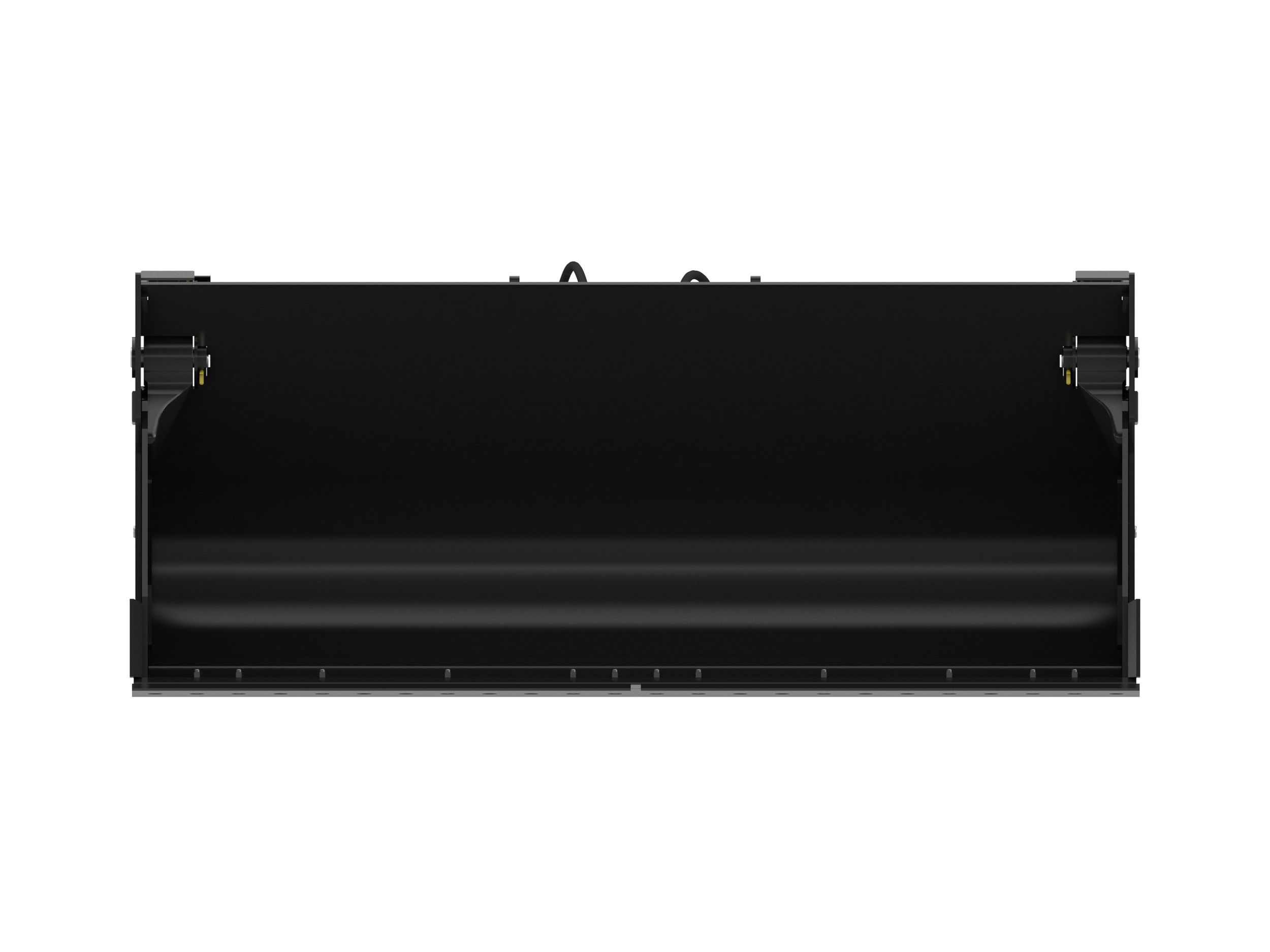

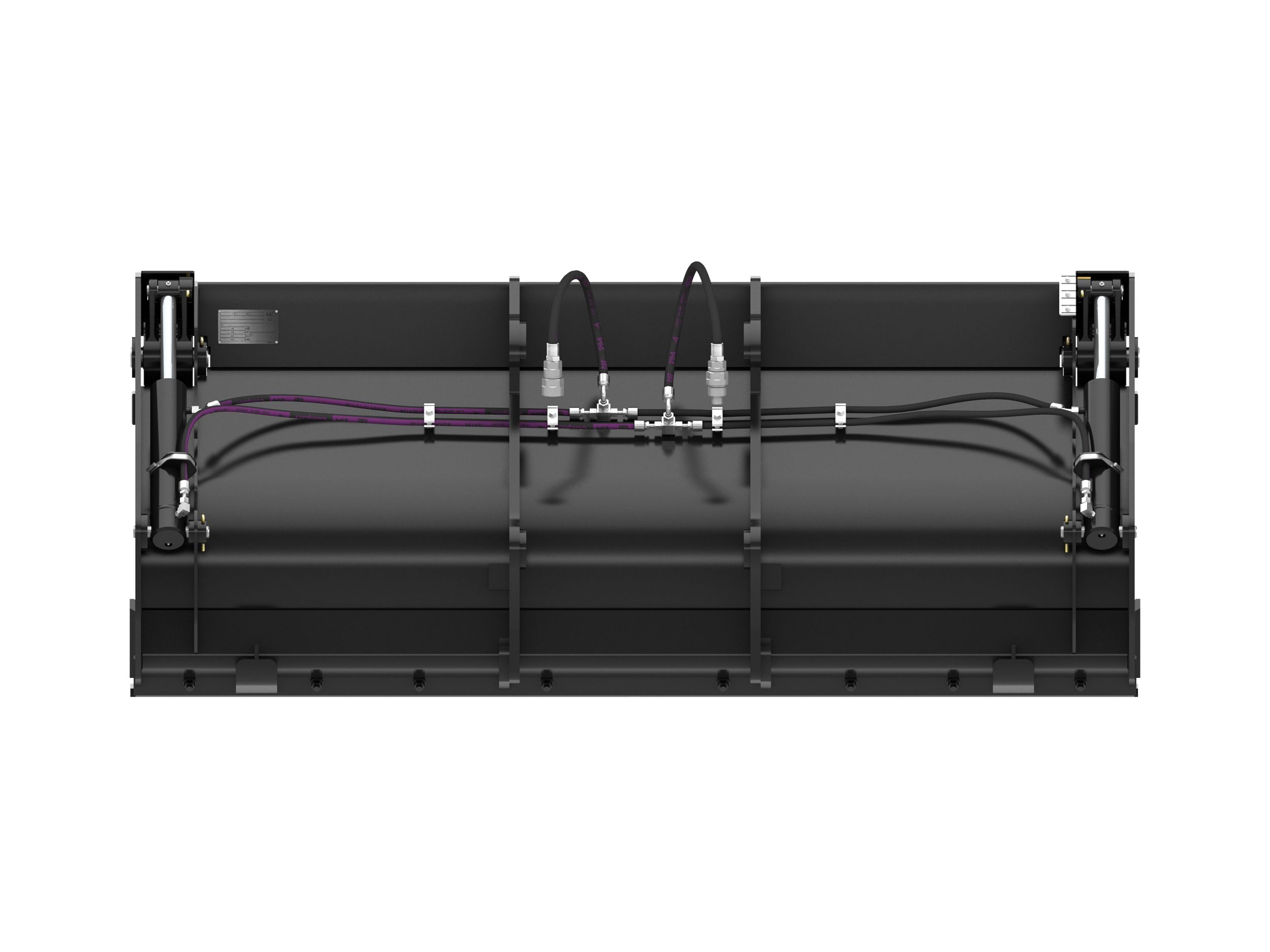

1.34 m3 (1.75 yd3) IT Coupler Heavy Duty Multi-Purpose Bucket With Bolt-On Cutting Edge
Application
Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.
Bucket Design
Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Lifting Hooks
2 lifting hooks (4 on Extreme Duty Buckets) allow the operator to lift objects using chain or straps.
Bucket Opening Sight Guide
See how wide you have your bucket open by looking at the sight guide
- easily visible from the operators seat.
Reinforced Bucket Side Plates
Reinforced side plates (Extreme Duty Buckets only) helps to increase lifespan of the bucket.
| Product Specifications | |
|---|---|
| Width | 2457 mm (96.7 in) |
| Height | 1054 mm (41.5 in) |
| Weight | 1095 kg (2414.1 lb) |
| Length | 1072 mm (42.2 in) |
| Capacity | 1.34 mu00b3 (1.75 ydu00b3) |
| Base Edge Thickness | 20 mm (0.8 in) |
| Cutting Edge Thickness | 19 mm (0.7 in) |
| Jaw Opening | 787 mm (31 in) |
| Clam Angle | 83 degrees |
| Interface Type | IT Coupler |
