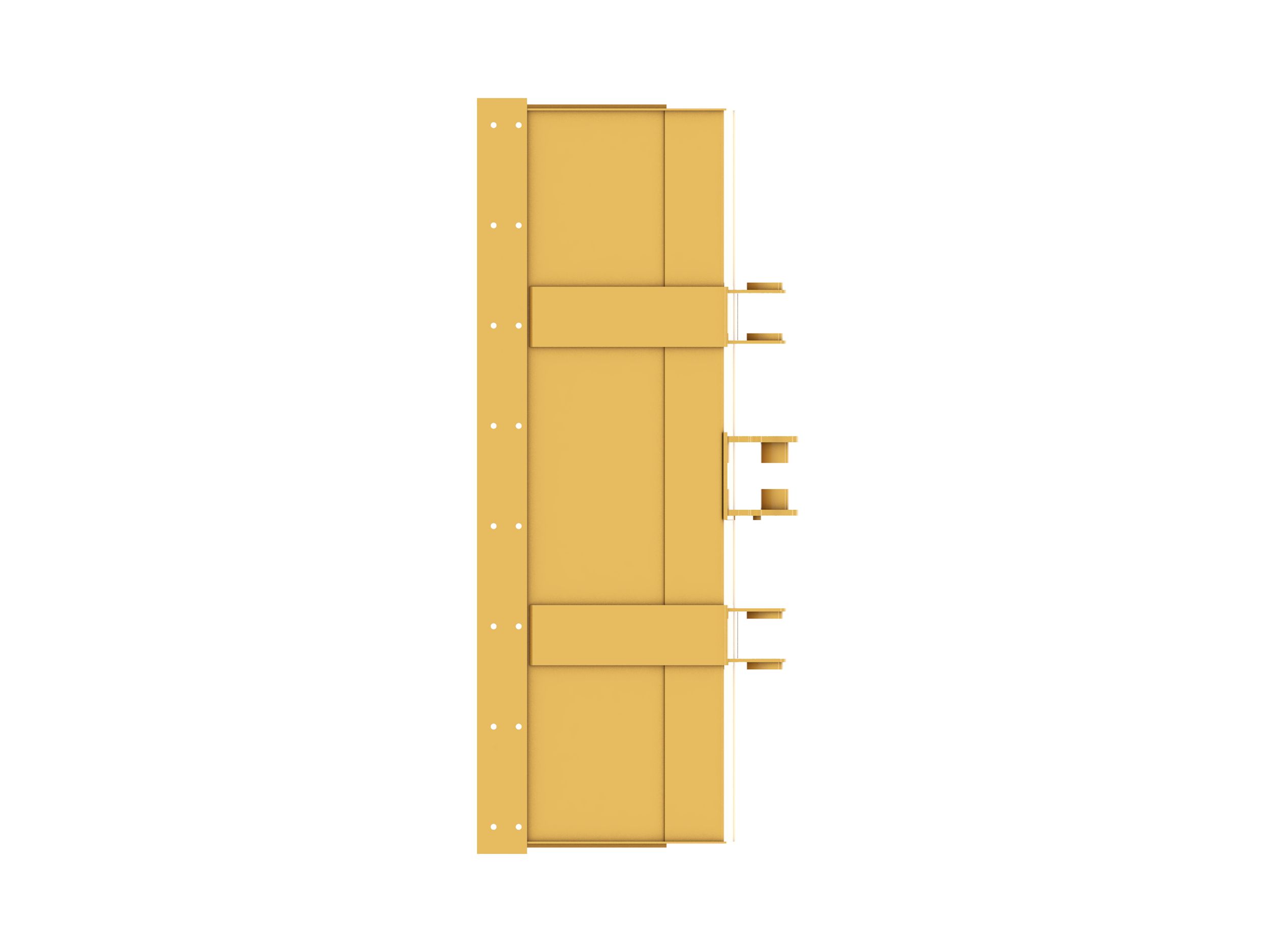

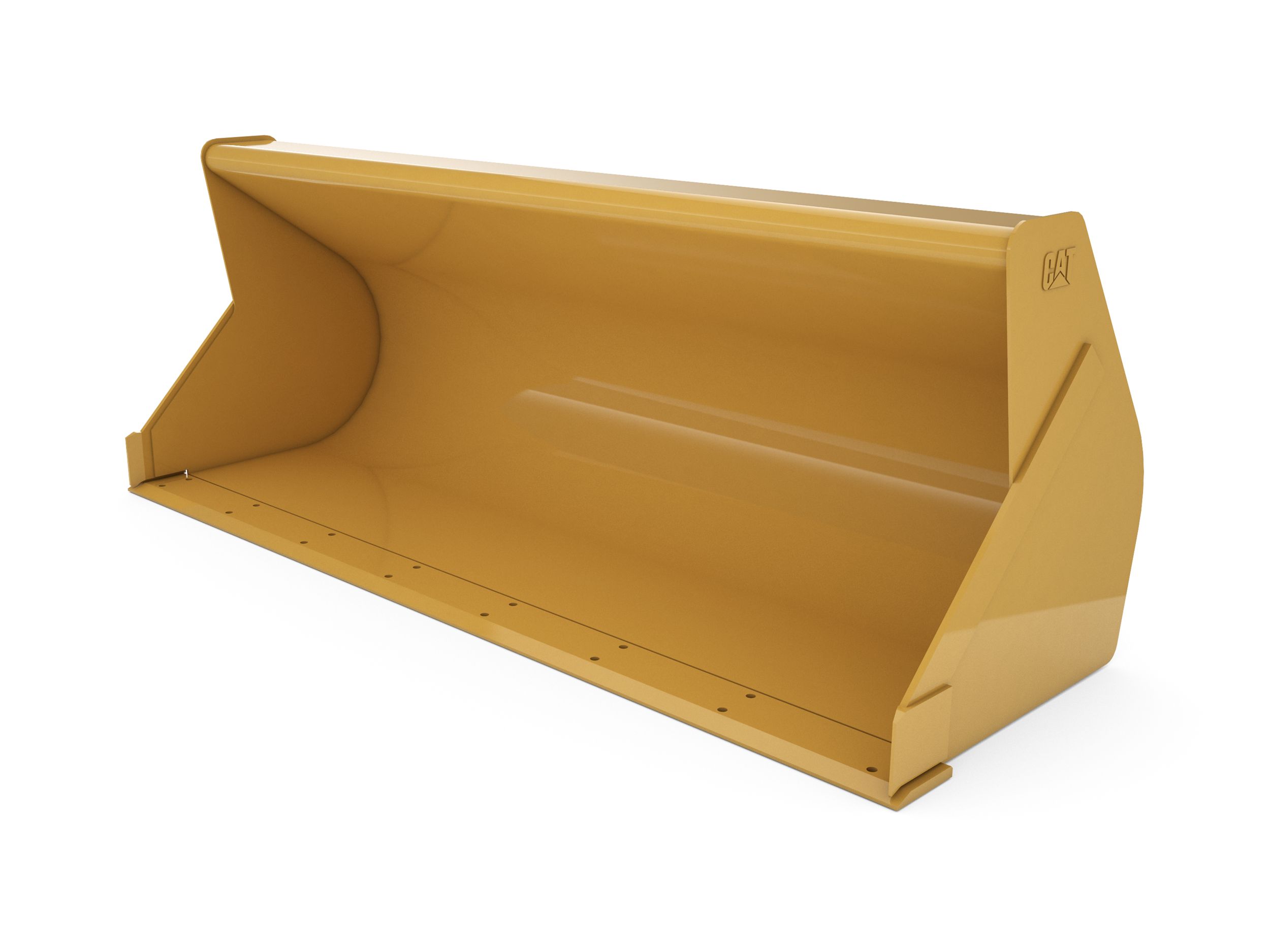

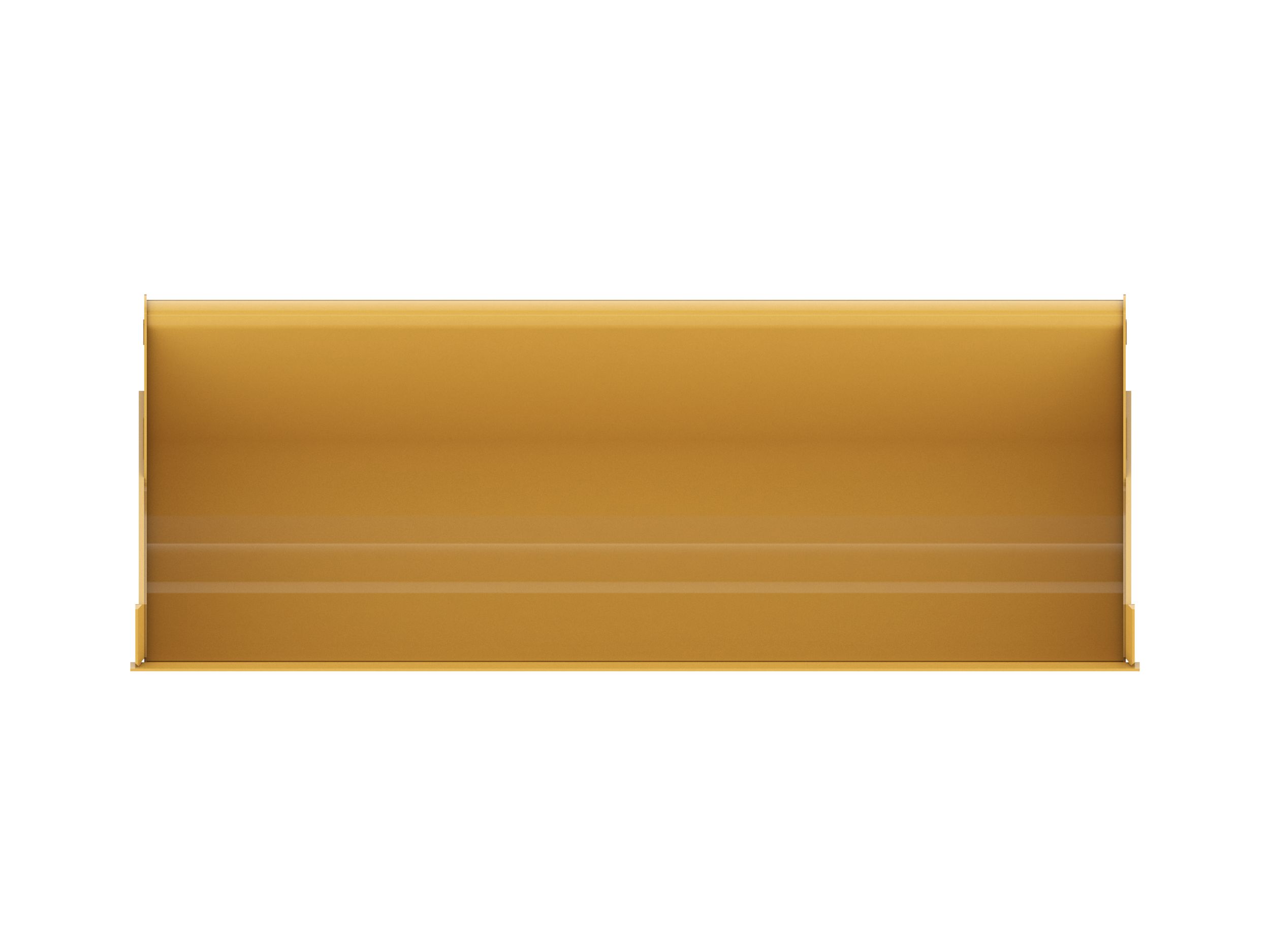

0.96 m3 (1.3 yd3) Single Tilt Pin On General Purpose Bucket With Base Edge
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.
Bucket Design
Formed back wrapper design enhances bucket loading and production in a wide variety of applications.
Superior Bucket Fill
Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
| Product Specifications | |
|---|---|
| Width | 2262 mm (89.1 in) |
| Height | 843 mm (33.2 in) |
| Weight | 437.7 kg (965 lb) |
| Length | 965 mm (38 in) |
| Capacity | 0.96 mu00b3 (1.3 ydu00b3) |
| Base Edge Thickness | 20 mm (0.8 in) |
| Interface Type | Pin On |
