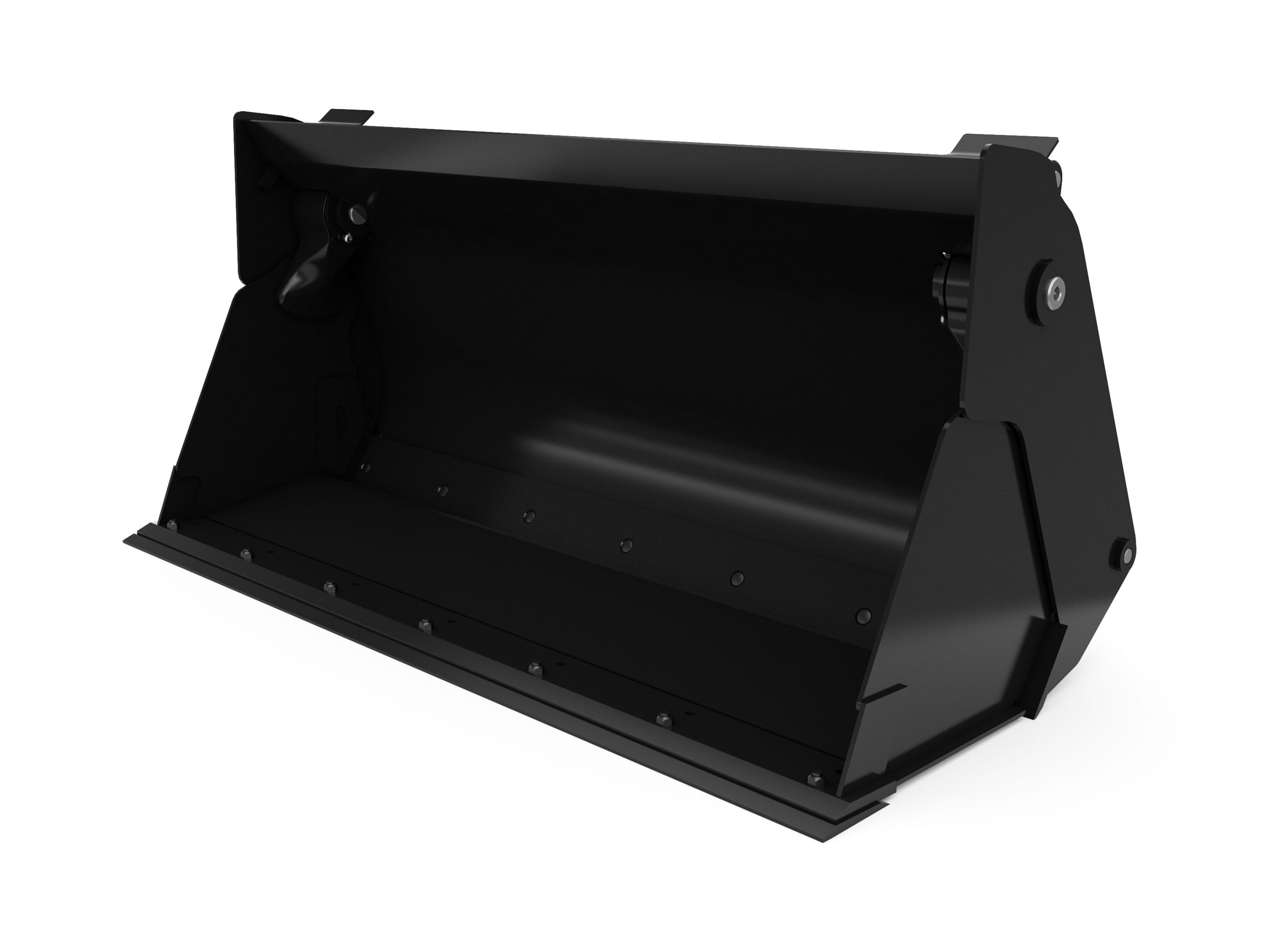

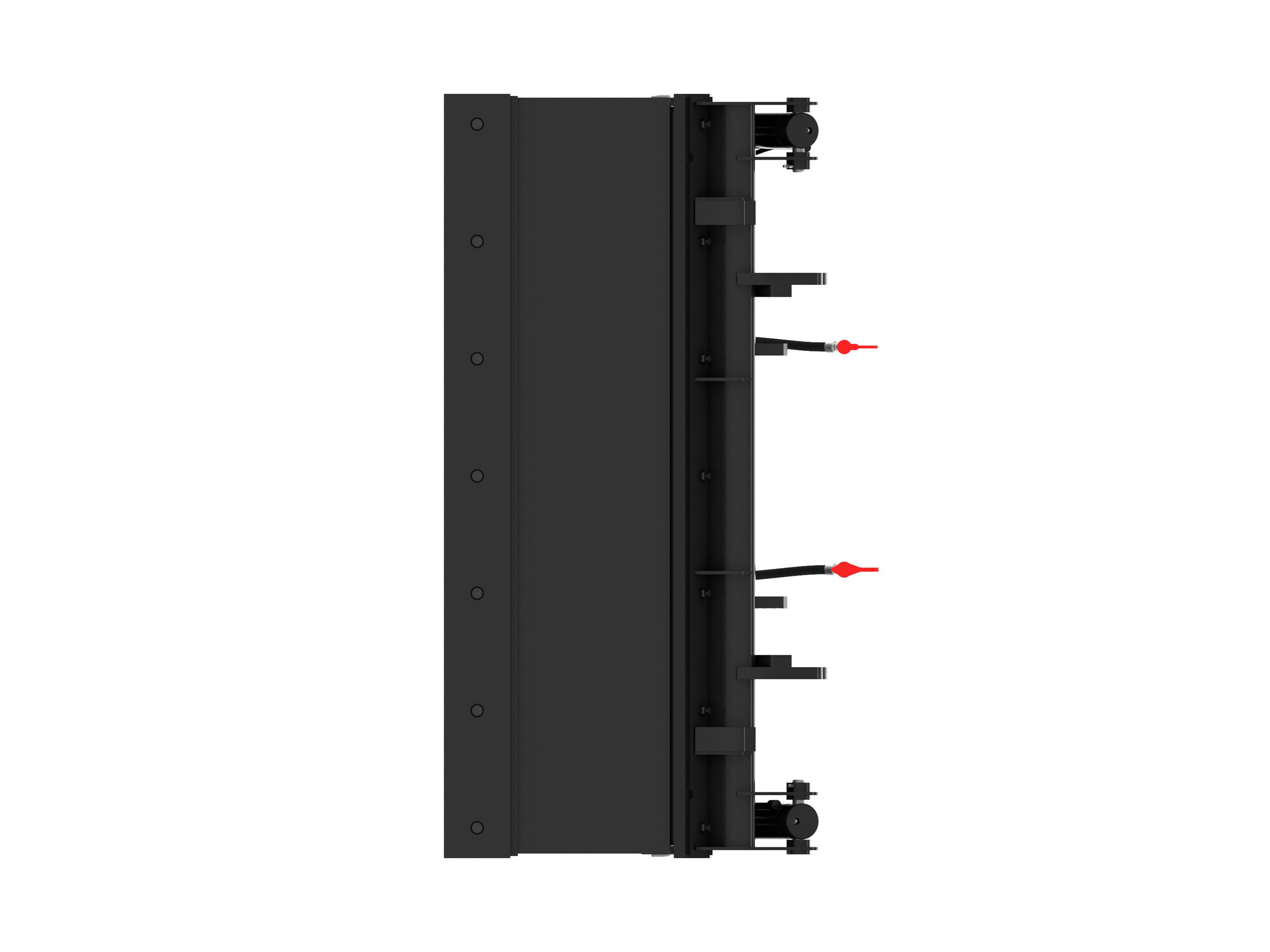

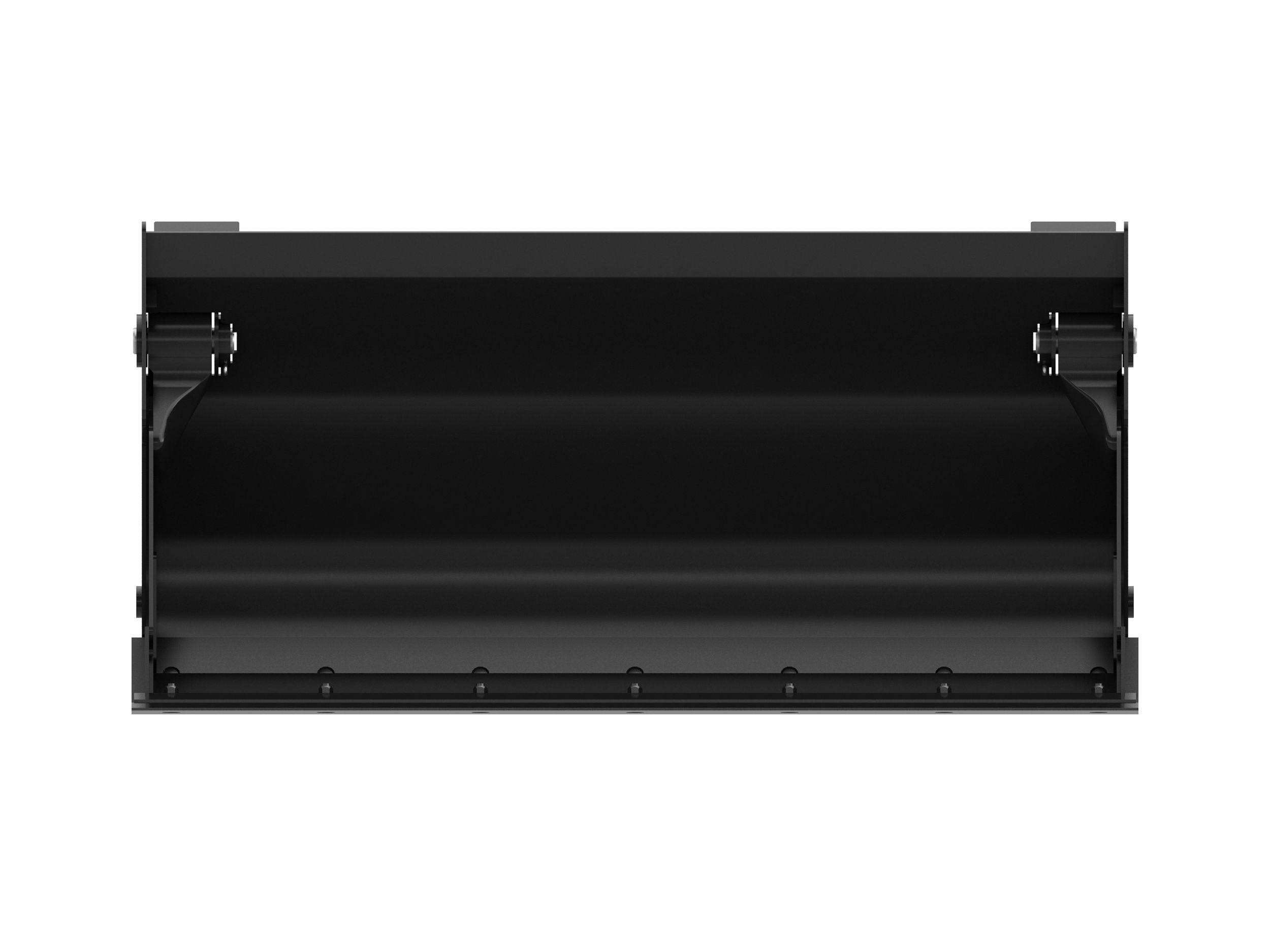

0.7 m3 (0.9 yd3) HPL-A Coupler Multi-Purpose Bucket With Bolt-On Cutting Edge
Application
Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.
Added Versatility
Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.
Dozing Application
Bucket clam jaw opening allows the bucket to be used as a dozing blade.
Serrated Clam Edge
Serrated clam side edge provides a gripping surface to hold material.
Ground Engaging Tool Options
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
| Product Specifications | |
|---|---|
| Width | 1880 mm (74 in) |
| Weight | 586 kg (1291.9 lb) |
| Height | 943 mm (37.1 in) |
| Length | 916 mm (36.1 in) |
| Capacity | 0.7 mu00b3 (0.9 ydu00b3) |
| Jaw Opening | 550 mm (21.7 in) |
| Clam Angle | 67 degrees |
| Base Edge Thickness | 20 mm (0.8 in) |
| Cutting Edge Thickness | 16 mm (0.6 in) |
| Interface Type | HPL-A Coupler |
