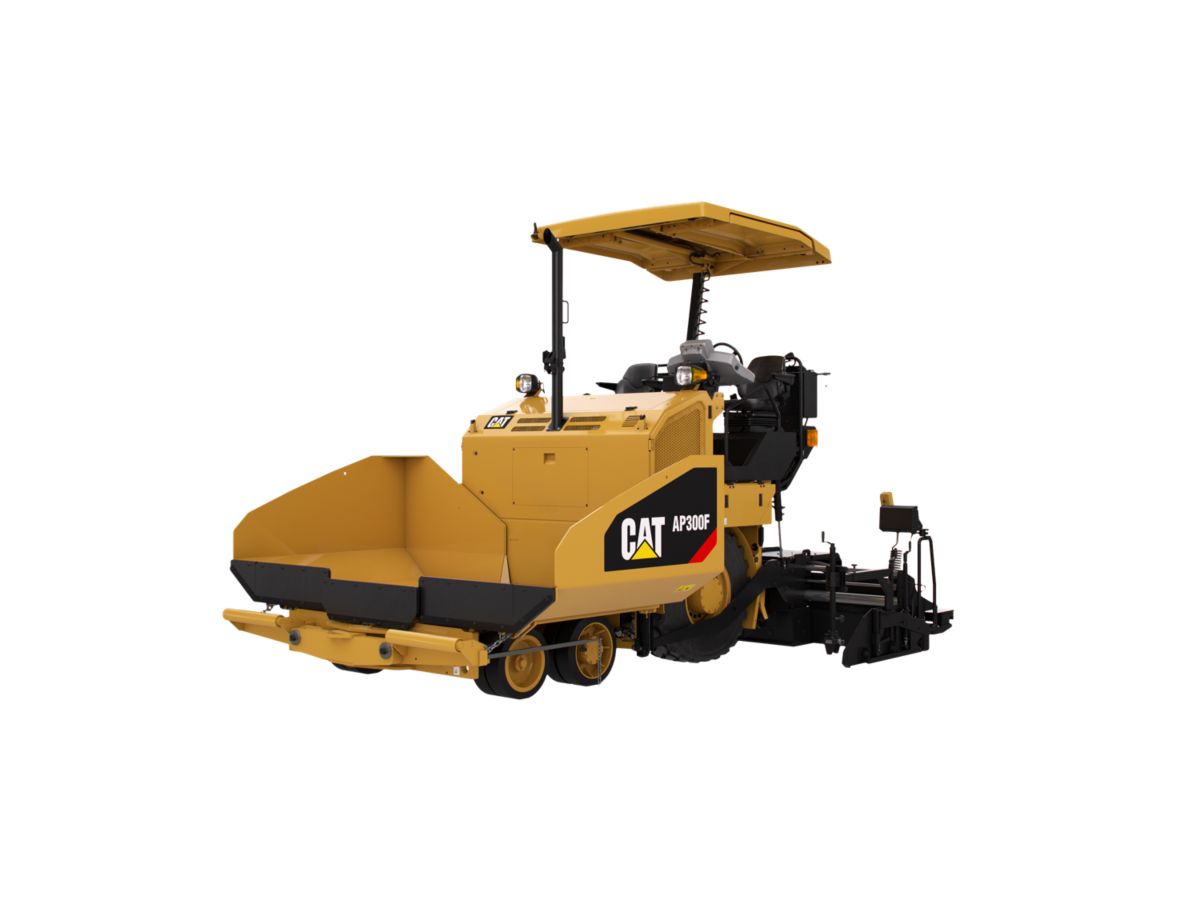

AP300F Paver

  • Overview
  • Finance With CavPower
  • Optional Services
  • View product Download

High Efficiency Powertrain

A turbo-charged, four-cylinder, Cat C3.3B engine provides 55 kW (73.8 hp) of power, while on-demand cooling optimizes fuel efficiency and keeps sound levels low. The engine meets regional emissions, keeping contractors up-to-date with the latest technology.

Automation Enhances Material Flow

Features such as auto-fill, one-touch hopper control, and single switch feeder system activation simplify machine operation and allow operators to concentrate on other work site functions.

Comfort and Visibility

Keeping operators comfortable helps optimize efficiency. The dual seats combine with the new contoured machine design for good all-around visibility. The low profile cooling system enhances forward viewing and the redesigned auger assembly optimizes visibility to material height in front of the screed. The heated seat option, and multiple seat adjustments conform to the operator to provide day-long comfort.

Application Versatility

The hydraulically extendible SE34 V and SE34 VT screeds have a standard paving range of 1.75 m to 3.42 m (5’ 9” to 11’ 1”). When equipped with mechanical bolt-on extensions, it can pave up to 4.0 m (13′ 1″). A reduction attachment narrows the paving width to 700 mm (27.5”) for trench work.

Simplified Service

The hydraulic system is equipped with grouped and centrally located solenoids. Manual overrides simplify troubleshooting by eliminating functioning systems. Large access doors provide quick and easy inspection. The electrical system is color-coded, numbered, and wrapped in kevlar braid for easy identification and durability. Product Link™ is available to maximize up-time, provide machine location, give hourly updates, and schedule service requirements at more opportune times.

Advanced Eco-Mode

Advanced Eco-mode modifies engine speed to save fuel and reduce sound levels, leading to lower operating costs and better work site communication.

More Traction

Large, hydroflated, 365/80 R20 drive tires combine with the front wheel assist option to deliver 20% more traction for those tough working conditions that include heavy loads and soft base materials.

Responsive Steering and Travel Options

Three steering/travel modes provide alternative control options for paving, traveling, and maneuvering around the job site. Pave mode enables a paving speed up to 61 mpm (200 fpm), while travel mode offers a quick speed of 16 kph (10 mph). Maneuver mode offers tight turning capability for easier positioning in compact areas.

Consistent Starting

Consistent paving starts can lead to smoother pavement. At the beginning of each pass, the auto-fill material feed system activates the augers and conveyors and moves material across the face of the screed until the material reaches the set points of the feed sensors. This consistency allows the operators to quickly fine tune the feeder system speeds for smooth material flow in front of the screed.

Simple Activation

Technology enhancements optimize operator performance. The material feed system can be activated with a single switch for quick setup. Each auger and each conveyor can also be activated individually in manual or automatic mode when certain conditions exist.

Advanced Hopper Control

Advanced hopper controls enhance operator efficiency by allowing more focus to be on the work site. The advanced control activates the hopper fold or retract function with a single touch. The operator doesn’t have to press the switch through the entire travel cycle.

Cleanout and Warm-Up Mode

Simple preparation and cleaning can save time. The cleanout and warm-up mode activates the augers, conveyors, and tamper bars (if equipped) at slow speed enabling for the application of inhibitors that help prevent material build-up.

Water Resistant Consoles

Providing reliable machine control in inclement weather can be a challenge. The water resistant consoles provide excellent reliability and meet IP67 common water submergence ratings. The switches have been tested to one million cycles without failure. If a failure does occur, grouped components are serviceable and it’s not necessary to replace the entire console.

Easy Recognition and Interactive Displays

Easy recognition and reliable controls help operators perform more efficiently. The raised switch design and adjustable brightness controls simplify nighttime operation, while the touch screen LCD displays allow for customization. Also, multiple language options and large symbols accomodate crew diversity.

Fast Heating Screeds

The electric heat control panel utilizes touch-pad technology and LED indicator lights to create a user-friendly interface. Three pre-set temperature settings for each screed section ensure even-heat distribution and manual adjustments provide override capability. On-board diagnostics enable the operator to verify fault indicators.

Tamper Bar Screed

The SE34 VT combines vibratory screed plates and tamper bars to optimize density behind the screed. Variable speed settings for tamping speed and vibratory speed help fine tune the system to maximize mat quality.

Quick-Change Heating Elements

The screed plate heating elements easily slide out for fast replacement in the event that a failure occurs.

Temperature Sensor Monitoring

The technologically advanced monitoring system automatically keeps the screed plates heating if a temperature sensor fails.

Weights
Operating Weight with SE34 V Screed 8000.0 kg (17637.0 lb)
Operating Weight with SE34 VT Screed 8200.0 kg (18078.0 lb)
Tractor Weight 6600.0 kg (14550.0 lb)
Operating Specifications
Standard Paving Range 1.75 m to 3.42 m (5.6 ft to 11.1 ft)
Minimum Paving Width 700.0 mm (27.5 in)
Maximum Paving Width 4.0 m (13.1 ft)
Maximum Paving Speed 61.0 m/min (200.0 ft/min)
Maximum Travel Speed 16 km/hr (10 mph)
Engine
Engine Model C3.3B
Gross Power 55 kW (73.8 hp)
Dimensions
Operating Length 5047 mm (16.5 ft)
Operating Width 3180 mm (10.4 ft)
Operating Height with Canopy 3415 mm (11.2 ft)
Transport Length 5029 mm (16.4 ft)
Transport Width 1938 mm (6.3 ft)
Transport Height 2645.0 mm (8.6 ft)
Wheelbase 1950.0 mm (6.45 ft)
Truck Entry Height 547.0 mm (21.5 in)
Truck Entry Width 3150.0 mm (10.3 ft)
Service Refill Capacities
Fuel Tank 110.0 L (29.0 gal)
Washdown Spray Tank 28 L (6.2 gal)
