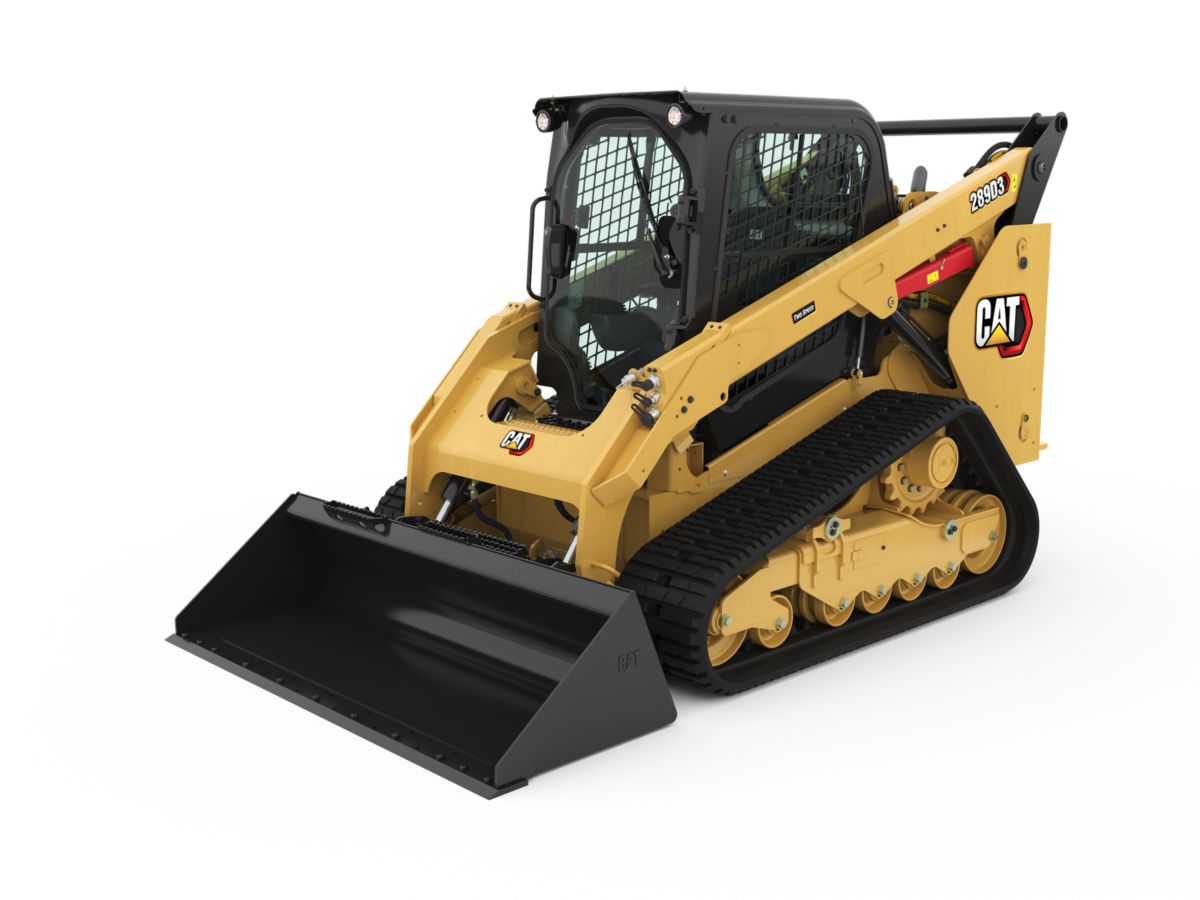

289D3 Compact Track Loader

CALCULATE FINANCE

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth Ride

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Engine
Gross Power - SAE J1995 55.4 kW (74.3 HP)
Operating Specifications
Rated Operating Capacities - 35% Tipping Load 1315 kg (2890 lb)
Weights
Operating Weight 4848 kg (10688 lb)
Dimensions
Length - Track on Ground 1630 mm (64.2 in)
Overall Length - Track 2129 mm (83.8 in)
Height - Top of Cab 2113 mm (83.2 in)
Ground Clearance 226 mm (8.9 in)
Departure Angle 33u00b0
Maximum Dump Angle 51u00b0
Clearance at Maximum Lift and Dump 2387 mm (94 in)
Turning Radius from Center - Machine Rear 1796 mm (70.7 in)
Length - Without Bucket 2995 mm (117.9 in)
Maximum Reach - With Arms Parallel to Ground 1270 mm (50 in)
Turning Radius from Center - Bucket 2256 mm (88.8 in)
Bucket Pin Height - Carry Position 190 mm (7.5 in)
Turning Radius from Center - Coupler 1410 mm (55.5 in)
Bucket Pin Height - Maximum Lift 3178 mm (125.1 in)
Reach - Maximum Lift/Dump 761 mm (30 in)
Length - With Bucket on Ground 3714 mm (146.2 in)
Maximum Overall Height 4015 mm (158.1 in)
Rack Back Angle - Maximum Height 84u00b0
Bucket Pin Reach - Maximum Lift 369 mm (14.5 in)
Hydraulic System
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 33 kW (44 HP)
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure 28000 kPa (4061 psi)
Hydraulic Flow - Standard - Loader Hydraulic Flow 86 kPa (23 psi)
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) 57 kW (76 HP)
Hydraulic Flow - Standard - Loader Hydraulic Pressure 23000 kPa (3335 psi)
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow 121 l/min (32 gal/min)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - Two Speed 13.3 km/h (8.3 mile/h)
Travel Speed - Forward or Reverse - One Speed 7.2 km/h (4.5 mile/h)
Service Refill Capacities
Cooling System 14 l (3.7 gal (US))
Engine Crankcase 11 l (3 gal (US))
Fuel Tank 105 l (27.7 gal (US))
Hydraulic System 52 l (13.7 gal (US))
Hydraulic Tank 39 l (10.3 gal (US))
Air Conditioning System (if equipped)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Engine
Net Power - SAE 1349 54.4 kW (72.9 HP)
Displacement 3.3 l (203 inu00b3)
Bore 94 mm (3.7 in)
Stroke 120 mm (4.7 in)
Net Power 54.4 kW (72.9 HP)
Engine Model Cat C3.3B DIT (turbo)
Operating Specifications
Tipping Load 3750 kg (8255 lb)
Breakout Force - Tilt Cylinder 3307 kg (7291 lb)
Rated Operating Capacity with Optional Counterweight 1985 kg (4370 lb)
Rated Operating Capacities - 50% Tipping Load 1880 kg (4130 lb)
Ground Pressure - With 450 mm/17.7 in Track 32.2 kPa (4.7 psi)
Ground Contact Area - With 450 mm/17.7 in Track 1.47 mu00b2 (2272 inu00b2)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Noise Level
Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab*** 103 dB(A) (103 dB(A))
Inside Cab** 83 dB(A) (83 dB(A))
Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Dimensions
Vehicle Width (450 mm/17.7 in tracks) 1981 mm (78 in)
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Engine
Peak Torque - 1,500 rpm - SAE J1995 265 N·m (195 ft·lbf)
Net Power - ISO 9249 54.9 kW (73.7 HP)
Noise Level
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Weights
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Standard Equipment

  • ELECTRICAL
    • 12 volt Electrical System
    • 80 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 850 CCA
  • OPERATOR ENVIRONMENT
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
    • Gauges: Fuel Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
    • Adjustable Vinyl Seat
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) Throttle, Electronic
    • Adjustable Joystick Controls
    • Anti-theft Security System with 6-button Keypad
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –37° C (–34° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Hydraulics, Standard or High Flow XPS
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • Steel Imbed Rubber Track – 400 mm (15.7 in) or 450 mm (17.7 in)
    • Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
    • PERFORMANCE PACKAGES:
      – Performance Package H1: Standard Flow Hydraulics (No Self Level)
      – Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
      – Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGES:
      – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
      – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
      – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
      – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

  • OPTIONAL EQUIPMENT
    • Hand-Foot Style Controls
    • External Counterweights
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Heavy Duty Battery, 1,000 CCA
    • Product Link PL641, Cellular
    • Ride Control
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
